Manure Injection Tool Minimizes Soil Disturbance

An Iowa no-tiller has developed a new tool that could help growers apply manure to fields without moving too much residue.

Injecting manure into soils with heavy cornstalk residue has long been a challenge for Iowa no-tiller Phil Reed.

Frustrated with available technology, the farmer and pork producer finally decided to design his own system — one that would slice through heavy crop residue in a manner compatible with no-till priorities.

The result is a vertical system that delivers high-speed, low-draft injection in high-residue environments.

The idea surfaced 2 years ago when Reed — a corn-and-soybean producer who also custom feeds 30,000 hogs annually — thought about the concept of pushing a coulter into the soil to create a reception void for liquid manure.

A no-tiller since 1985, Reed found it difficult to find a tool that would cut through heavy residue and seal the slot while leaving enough residue on the soil surface — and doing this with a machine that was both durable and affordable.

In late 2010, a prototype Reed developed hit the fields around Washington, Iowa, and commercial units are now available.

Coulter Leads Way

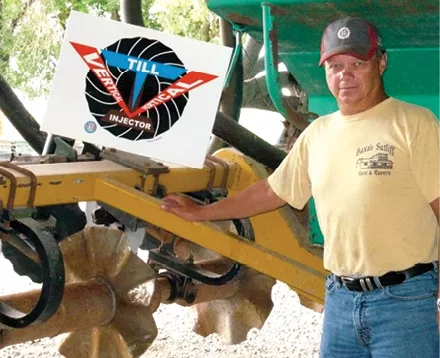

Reed’s VTI — Vertical Till Injector — clamps onto a toolbar mounted to the back of the liquid-manure wagon. Each row unit has a 22-inch, eight-wave notched blade to cut through residue, lift the soil and splay it apart.

A slanted hose from the tank places the manure 6 to 8 inches beneath the soil surface. Then, adjustable 18- or 20-inch containment wheels at the back of each row unit catch the displaced soil and residue to lay it back over the…

To view the full article, please subscribe or login.
 Premium content is for our Digital-only and Premium subscribers. A Print-only subscription doesn't qualify. Please purchase/upgrade a subscription with the Digital product to get access to all No-Till Farmer content and archives online. Learn more about the different versions and what is included.

Mark Parker

Contributing Editor
